The Ultimate Guide to Kitchen Cabinet Hinges Types

The kitchen is often referred to as the heart of the home; a room meant for creativity, hosting people, and partaking in everyday activities. Within this primary area, the kitchen cabinets not only serve as practical storage space, but also define the kitchen’s design. However, the effortless functionality and uncluttered appeal of these cabinets depends on unappreciated parts: the hinges. These cabinet connectors are the most crucial part of the cabinet hardware. Deciding which hinge to use is far more complex than just a decision. It is one that shapes the breakage, functions, and overall appearance that the kitchen will have.

Why Choosing the Right Hinge Matters

Consider cabinet hinges to be the underappreciated champions of your kitchen cabinets. They support the weight of the doors, control how the doors open and close, manage a myriad of alignment aspects, and intricately blend into functionality. A not so well thought out hinge option or a cheap hinge has doors that could sag, gaps that aren’t level, annoying sticking positions, or the loud bang of a cabinet door slamming. On the other hand, appropriate cabinet hinge ensure reliability, smooth usability over the years, proper longevity of aesthetic appeal (modern seamless or good old fashioned charming), and better comfort and safety when it comes to no more pinched fingers or noise reduction.

Choosing the right hinge is not just about making certain the door opens; it’s also about the way the cabinet is built and how you would like to mount the door. Every hinge type available comes with its own set of features. Understanding these features and matching them to your functional needs is what saves you from disappointment later. The truth is, not everyone looking into cabinet hinges will be an expert. But understanding what’s available is imperative for any person looking to remodel a kitchen or having custom cabinetry built. Doing so guarantees that the end product will function seamlessly and endure the test of time, all the while being extremely elegant.

7 Common Kitchen Cabinet Hinge Types Explained

Before we begin with specific hinges, let’s understand the structure of a modern hinge (especially the concealed or European) in broad strokes. Concealed hinges have two principal components: the hinge cup, which is the arm (sometimes also known as the door wing) that mounts on the door which is often drilled out to receive a hinge cup known as a bore, and the mounting plate (or base plate) which is fixed to the wall or face frame cabinet. This piece could functionally be termed the frame wing. Screws which are part of this portion of the hinge system enable adjustments which are usually sideways, in, and to a lesser extent up, thereby allowing the door to be shifted into correct position after fitting. More traditional styles, such as butt hinges, are simpler in nature with two leaves (the hinges) that are connected by a pin. Knowing these parts roughly paints the picture of how hinges are applied and how they function.

Now, let’s explore some of the most prevalent types you’ll encounter among the variety of styles available:

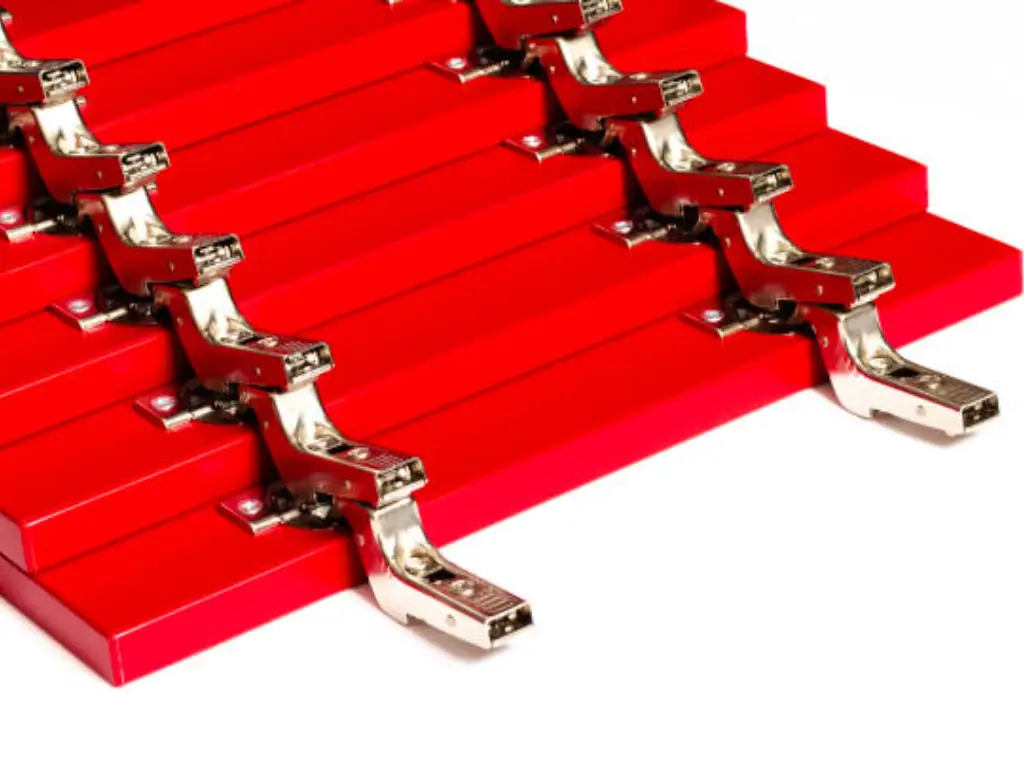

1. European Hinges (Concealed)

Features: The hinges are completely concealed and become unnoticeable when the door is closed. They are installed within the cabinet door and the cabinet wall or frame, making use of an advanced articulated arm system. These concealed hinges no longer show from either side when the door is shut.

Advantages: Modern aesthetics is another area these concealed hinges assist in modern seamless design. Also providing superb 3D adjustability aiding in proper door alignment. These hinges are smoothly and reliably operational ensuring prolong usage.

Suitable For: Best used in modern, minimalist and transitional kitchen cabinets for both faceframe cabinets (with appropriate mounting plates) as well as for frameless cabinets. Features such as soft close can be added with the base mechanism.

2. Butt Hinges

Features: A butt hinge includes two leaves connected with a pin. When the cabinet is closed, the hinge barrel composed of the knuckles and the pin, is positioned externally on the cabinet. They frequently need mortising for a flush fit, but they can also be mounted on the surface.

Advantages: Butt hinges are remarkable because of their simplistic and sturdy construction. They are vintage or classic in some of their variations with reverse hinge feature functionality.

Suitable For: Most commonly used in traditional face frame cabinet applications, furniture, and even interior doors. Good fit for designs requiring exposed hardware. Usually made from brass or stainless steel.

3. Soft-Close Hinges

Features: These hinges have a built-in feature that has either hydraulic or mechanical damping that slows the movement of the door during the last stages of closing.

Advantages: These types of soft closed hinges do not allow slamming of doors, which results in a quieter kitchen. In addition, these hinges also reduce the damage done to the doors and cabinet frames, increasing the durability of the fittings. These type of hinges improves user’s confort and safety while giving an impression of elegance to the room.

Suitable for: Soft close hinges are ideal for any modern kitchens where reduction of noise and easy of use is a priority. They are usually fitted to the modern European style hinges to make sure a minimalistic look is sustained.

4. Half-Mortise Hinges

Features: One of the hinge leaves is mortised into the cabinet frame while the other is applied to the back of the cabinet door. The hinge barrel usually projects above the surface of the door when it is closed.

Advantages: A half-mortise hinge is not as crude as a fully surface-mounted or non-mortised butt hinge. It provides some degree of tradition with more modern features; the hinge can be mounted fixed and integrated into the door.

Suitable For: Best suited for inset cabinet doors made in traditional or transitional styles. They are ideal for uses where some degree of hinge visibility is permitted, while to a greater extent, enhanced refinement and integration of the frame is needed.

5. Pivot Hinges

Features: Top and bottom edges of the doors have pivot hinges installed which differ from the customary position along the side of the door where pivot mount is made.

Advantages: With pivot hinges, doors swing in unusual ways. These hinges will also support tall or especially heavy doors. Because these hinges are placed at an inconspicuous location, they contribute to a very uncluttered and simplistic appearance.

Suitable For: Great for huge doors leading to pantries, doors integrated into appliance cabinets, inset doors, overlay doors, and other forms of structures. These hinges are also great for chassis types like armoires and entertainment centers.

6. Bi-fold Hinges

Features: Bi-fold hinges allow a single sensational cabinet door to split into two smaller cupboard doors, which can be folded together in the midsection when opened.

Advantages: These hinges render the interiors of cabinet corners, like those with lazy Susans, to be much easier to reach as well as saving space compared to a single large door, particularly in smaller confined spaces.

Suitable For: Primarily intended for corner kitchen cabinets, bi-fold hinges are particularly useful in areas where maximum accessibility is required.

7. Concealed Hinges (General Term)

Features: Flexible hinges can not be seen from the outside of a cabinet and are considered to be concealed. These are most European cup hinges put to use with doors open.

Advantages: Flexible hinges allow doors or cabinets not to impede on the overall look or finish of the room creating a seamless masterpiece. There is also vast range in adjustability to ensure precise alignment and installation of the cleanse. They can be used for different styles of cabinets or overlays too.

Suitable For: Concealed hinges can be applied anywhere within chests, cabinets, cupboards and cupboards. They are placed on the doors and are ideal for ordinary and glass doors. Many overlay hinges use them as the base too.

Key Features: Soft-Close and Self-Close Hinges

In addition to the primary types and mounting features, modern hinges are often equipped with features that further convenience and ease of use. Soft-Close and Self-Close or Self-Closing feature are two sought after options that many consumers look for. Deciding between the two often comes down to the individual’s preference or budget.

• Soft-Close: As outlined previously, this feature softens the final portion of door travel using a damper system either hydraulic or mechanical which is built into the hinge. The damper takes control during the last part of the door’s travel, gently bringing it to a quiet close, also known as a slam stop. This not only decreases marking and enhances life expectancy of the cabinet but adds a sense of finesse and elegance to the cabinetry. After a few uses, users are widely reporting essential needs for this feature. Consider, soft-close as gentle hand guiding the door home.
• Self-Close (or Self-Closing): While self-close can often be confused with soft close, they are two very different features. In contrast to soft-close, self-closing utilizes a spring mechanism in the hinge itself. The hinge engages a spring which actively pulls the door shut, the final few inches or degree of travel. This guarantees that the door firmly latches shut without possibility of drifting open. While it guarantees closure, a standard self-closing hinge without a soft-close mechanism can still result in an audible click or snap as it closes.

Can a hinge be both?

Many modern concealed hinges, especially the European-style ones, incorporate both features. They employ a spring for self-closing action and use a damper for soft-closing, enabling the best of both worlds: a door that gently closes shut, but not without pulling itself securely to the frame.

Is it worth the investment?

For most users, the expense of soft-close hinges is worth it given the remarkable change in experience while using the kitchen – the dramatic reduction in noise and the sense of liquid motion turned mechanical. Standard self-closing (without soft-close) does lack the finesse of the soft-close mechanism, but is a more basic feature that allows doors to remain shut. When considering an upgrade, or when picking new hinges, assessing your budgetary constraints alongside the benefit of these features is worthwhile.

Overlay vs. Inset: How Your Door Mounts

Having a clear understanding of how the cabinet door sits relative to the cabinet opening is important for selecting the ideal hinge. This particular alignment almost always falls into two categories: Overlay and Inset.

Overlay Doors

Perhaps the most popular type of cabinetry in modern use today are overlay doors. Their configuration is such that the cabinet door comes over the cabinet opening and therefore, it is able to cover part or all of the cabinet frame or front edge of the cabinet box. The hinge type depends on how much overlay there is on the door.

• Full Overlay: The cabinet box that is frameless is almost entirely covered by the door, and in the case, where there is a face frame, the door also covers the entire face frame. This creates a modern look due to the minimal gaps between drawers and doors and so the full overlay hinges will always be used when maximum precision is required.
• Partial Overlay (or Half Overlay): The cabinet face frame is partially covered by the door, meaning that the perimeter of the door will have some portion of the frame that is visible. This is the more traditional style and is commonly seen on face-frame cabinets. The amount of overlay is also important, for instance, ½ inch or ¾ inch, and must be taken into consideration when selecting a hinge that suits these partial overlays.

Certain partial wrap hinges are made this way, wrapping slightly around the cabinet frame to enable them to be securely secured.

Inset Doors

Doors with inset edges are set back within the opening of the cabinet box unlike the doors with edges that protrude over the cabinet box. This design allows for a more traditional, furniture style cabinets that showcase the skill involved in making the cabinetry. Notable features are:

• The door opening coincides with the outer profile of the cabinet frame (for face-frame cabinets), or, the outer surfaces of the cabinet box (this is not common in frame-less cabinets).
• In order for the door to be properly positioned inside the frame when closed, special inset hinges must be used, and they have to allow the door to turn without obstruction. Some of these hinges are of the concealed type and sit in the frame cavity.
• As these doors are flush mounted, even the smallest of gaps is exaggerated. Therefore, the quality and adjustability of the hinges is very strong for achieving the fine tuned refined look.
• Bordering inset doors feature a trim that slightly protrudes over the frame so that the main part of the door that is set back or inset.

Why Hinge Selection Matters

Having to choose between two positions of doors defined by overlays and one’s cut above inset doors determines the ways in which hinges can be picked. The method of a hinge cut out for overlay doors will be partially opposite when employed over an inset cut door and vice versa.

For partial overlay doors, the overlay measurement determines the style of hinge or mounting plate that is required. Style of hinge should always be determined after ascertaining the style of door mounting to ensure the alignment will be correct both functionally and aesthetically.

Face Frame vs. Frameless: Know Your Cabinet

Underlying cabinet construction is just as important as any design detail, such as doors. Kitchen cabinets are usually constructed in one of two ways: with a Face Frame or Frameless. Understanding which type of cabinet you have is essential to selecting the proper hinges which will determine the style of your cabinet.

• Face Frame Cabinets: These are common in traditional American cabinetry and they have a solid wood frame attached to the front edges of the cabinet box. The height of the frame is usually from 1.5 to 2 inches. This face frame offers strength and a solid surface to which doors and hinges can be mounted. In face frame cabinets the cabinet doors can be overlay (full or partial) or inset. There are hinges for face frame cabinets, known as face frame hinges, that have mounting plates designed to fasten securely to this frame. So these plates usually attach to the inside edge of the frame or sometimes wrap around the sides of the frame which make them attach to the inside edge.
• Frameless Cabinets (European Style): This form of construction is all European style as it does not have a front face frame. The cabinet box itself is normally single structure. The edges of the side panels and top and bottom of the cabinet are normally edge banded. The doors attach to the walls of the cabinet box. This style is easier to access the interior of the cabinet, offers more space to store items, and is modern-safe. The gaps, or reveals, between the cabinet doors are very close, giving the cabinet a chic look. Hinges for frameless cabinets have mounting plates that can be attached directly to the side panels of the frameless cabinet.

The architectural design of cabinets is vastly different and requires different types of hinges to function. While the hinges serve the same purpose, a hinge designed for a frameless cabinet will not work on a face frame cabinet and vice versa. Trying to use the different borders will result in a mismatch which will create problems with the functionality of the cabinets at best or create a complete blockage of use at worst. Like using a square peg in a round hole – it doesn’t work. Realizing this difference, especially concerning the front of the frame, is crucial.

Here’s a quick comparison:

Always confirm your cabinet type before proceeding with hinge selection.

Measuring and Installation Basics

While we are unable to cover each specific step for the installation process of each individual hinge, this article does highlight important measurement prerequisites to take into account before purchasing said hinges. These preliminary measurements align with the door dimensions and hinges with which you intend to work.

Key measurements often include:

1. Overlay: If your overlay doors are not fitted with overlays, then you will need to know the dimension value. This is the degree to which the door edges covers the face frame or cabinet rim. From the edge of the opening of the cabinet, take this measurement up to the edge of the door which is shut. Common varieties with overlays also differ in magnitude, such as 1/2”, 3/4”, 1”, 1 1/4”, etc. This measurement determines the specific hinge or mounting plate intended for use.
2. Cup Bore Diameter: For concealed or European hinges, a cup recess is excavated at the center of the cabinet door to contain the hinge. Usually the size of this bore diameter is quite 35mm, however there are smaller 26mm versions too. Be sure that the hinge you intend to use is aligned with the existing bore diameter or that if you plan on drilling new holes, you have the right drill bits (preferably it’s better to use a Forstner bit).
3. Cup Bore Distance (or Edge Bore Distance ‘C’): This is the measuring range from the mounting edge of the door to the cup bore of the hinge. This measurement impacts how the hinge is positioned relative to the door edge which affects the possible over lay. Other hinges might be using specific edge bore distances (usually from 3mm up to 6mm). Check with the manufacturers details.
4. Hinge Opening Angle: The range for how much a door will open along the hinge (for example, 95°, 110°, or as wide as 170°) is given by the hinges. In where., think of accessibility or any other possible interference (walls or other cabinets) with selection the range to be used. Wider range access is possible but more space is needed.

Basic Installation Concept (Concealed Hinges):

• Mark drilling locations accurately both with and without the use of tape for better spatial orientation.
• Drill cup holes in the door at the correct diameter and edge distance.
• The assembly of the hinge cup or arm may be pressed or screwed into the door.
• The mounting plate may also be referred to as the base plate which goes attached to the cabinet wall frameless or face framed into the face frame. Both should be done at the correct height.
• Mounting plates can have hinge arms clipped or slid onto them.
• Hinge screws, usually three, can be adjusted to better align the door in the up down, left right, in out axes.

Regardless of what instructions the other parts mention, it is important to remember all installation instructions hinge manufacturers provide since their details will differ. It almost goes without saying that measurement and drilling precision during the installation will determine success.

How to Choose the Perfect Cabinet Hinge

Navigating the options can seem daunting, but by following a logical process, you can confidently select the ideal hinges for your project. Here’s a step-by-step checklist:

1. Identify Your Cabinet Type
2. Determine Your Door Mounting Style
3. Choose the Hinge Type Aesthetic/Function
4. Select Desired Features
5. Determine the Opening Angle
6. Check Physical Specifications (Especially for Replacements)
7. Consider Quality and Budget

By working through these steps, you systematically narrow down the options based on your specific cabinetry and preferences, ensuring you select a hinge that fits correctly, functions beautifully, and complements your kitchen’s design.
