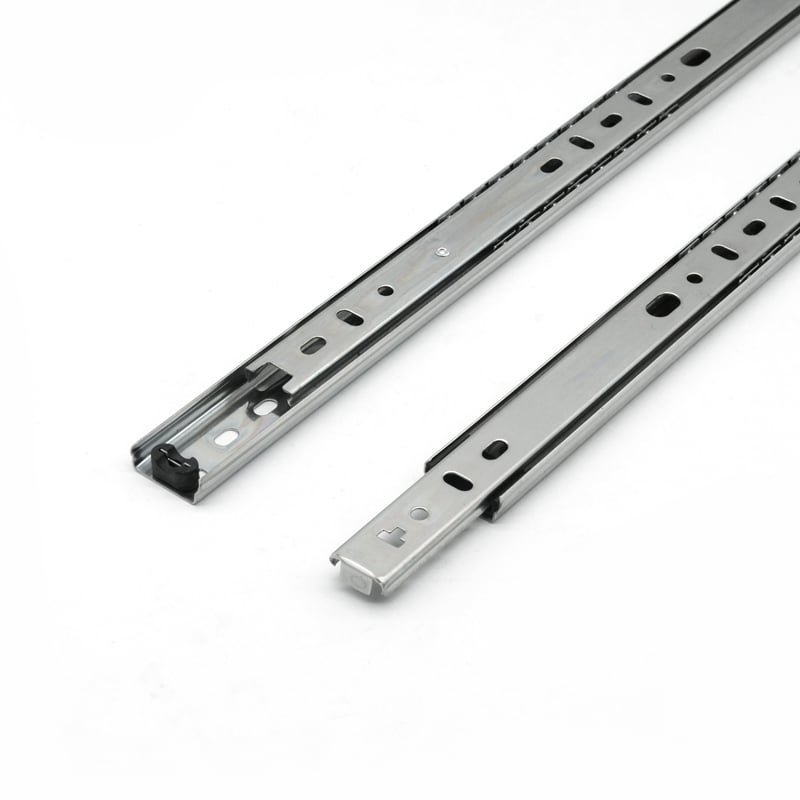

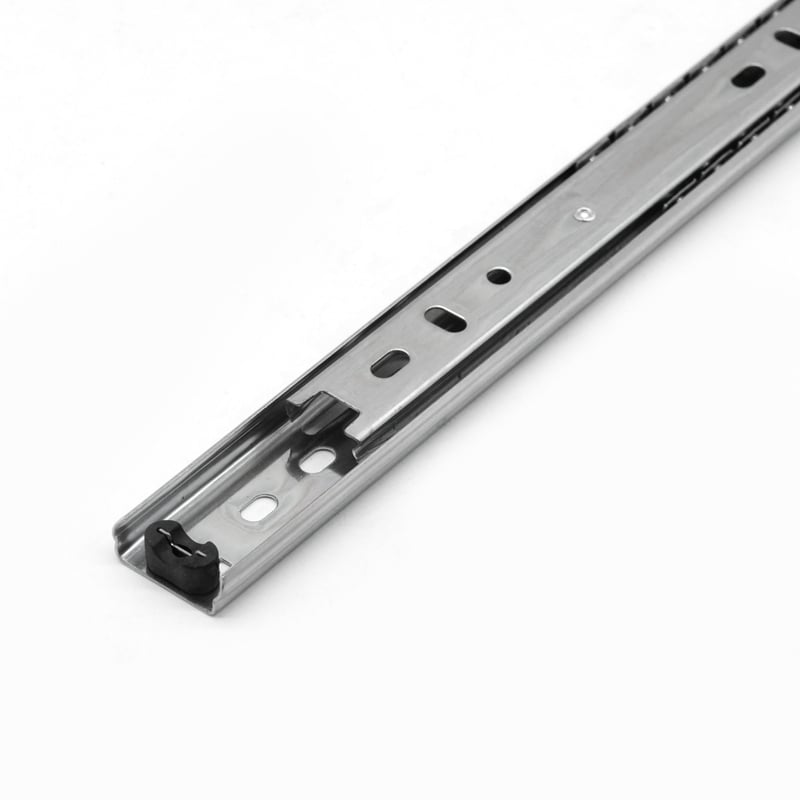

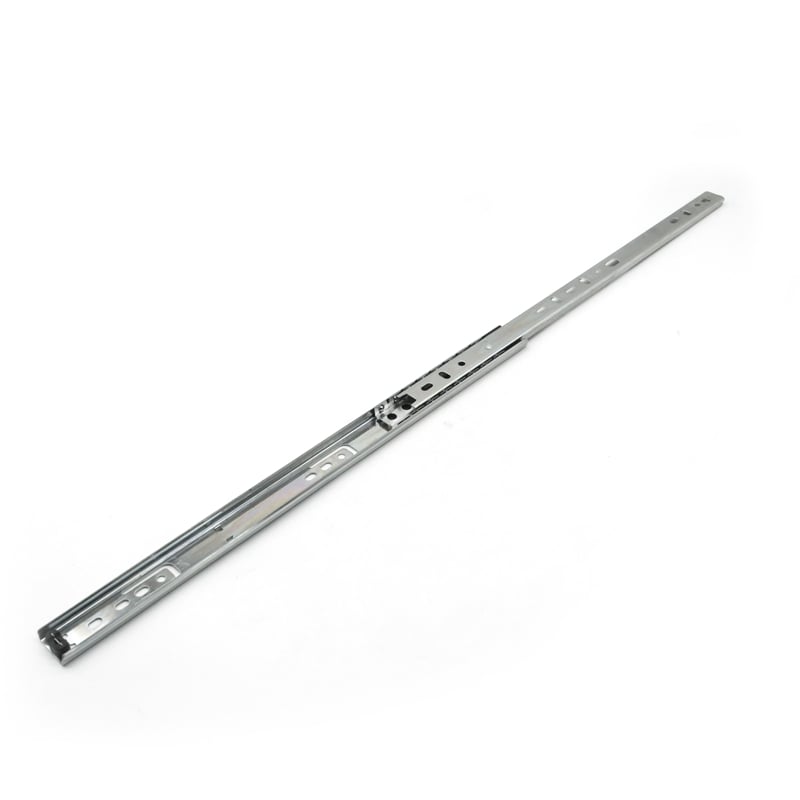

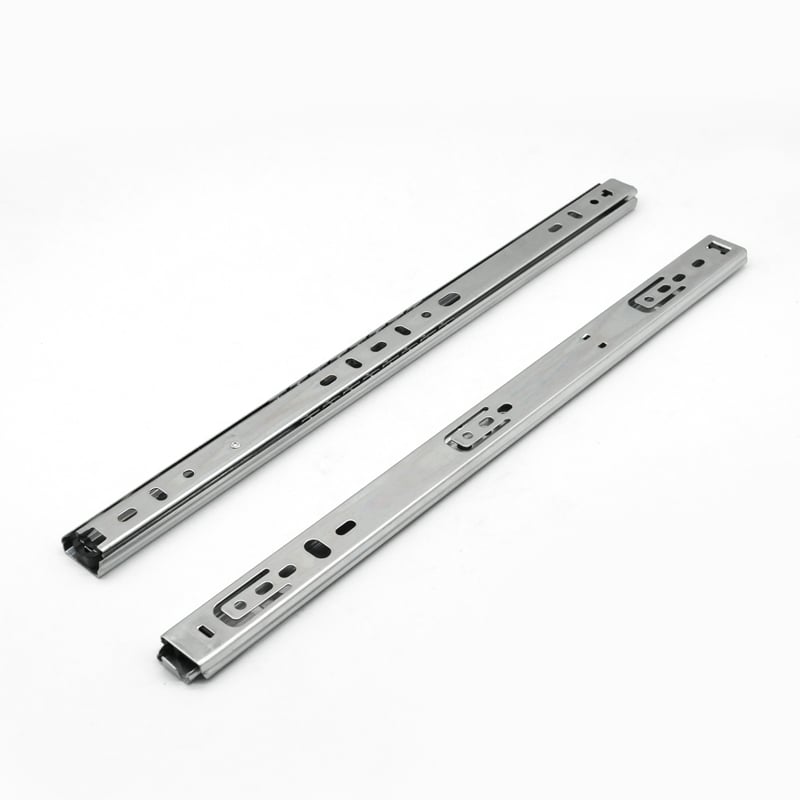

27mm 3/4 Extension Side Mounting Ball Bearing Slide

Quality classification under EN 15570, Level 3
For door thickness 15 - 24 mm
Cup depth 12.8 mm
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel, nickel plated

Model No.: MWZ03011102
Material: Steel
Finish: Zinc plated, Black Color
Salt spray test:12H
Loading Capacity: 20KG
Quality grade: Comply with EN15338, ANSI/BHMA A156.9, ASTM-B117 test
Product features: High quality steel ball, Firm and stable, Strong loading capacity

Get Quotation of this Product

Get Testing Report

ORDER INFO

WX20231025 102349

INSTALLATION DIMENSION

INSTALLATION DIAGRAM

3408 INSTALLATION DIAGRAM
