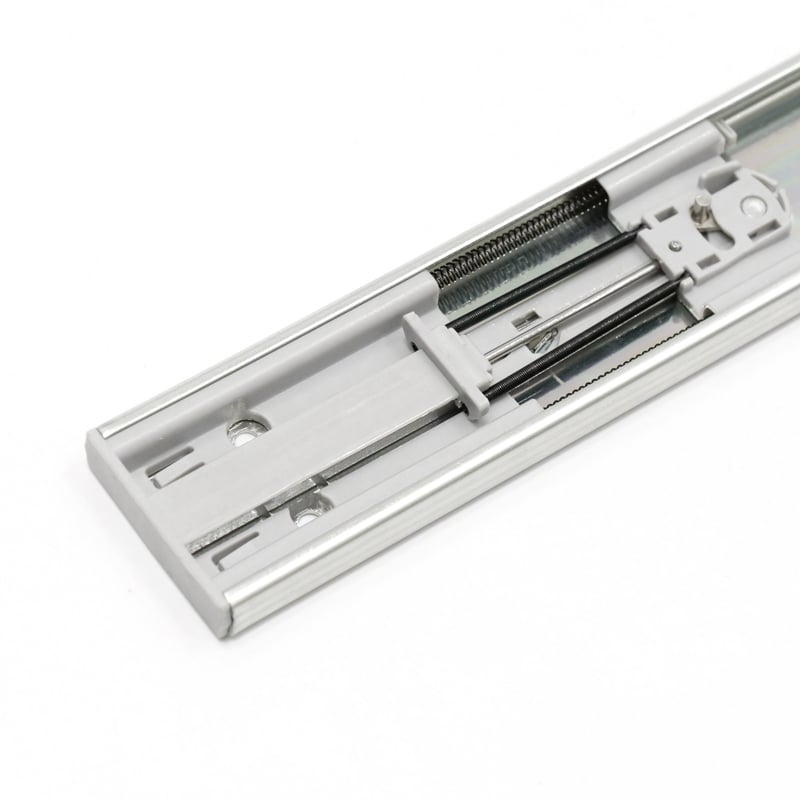

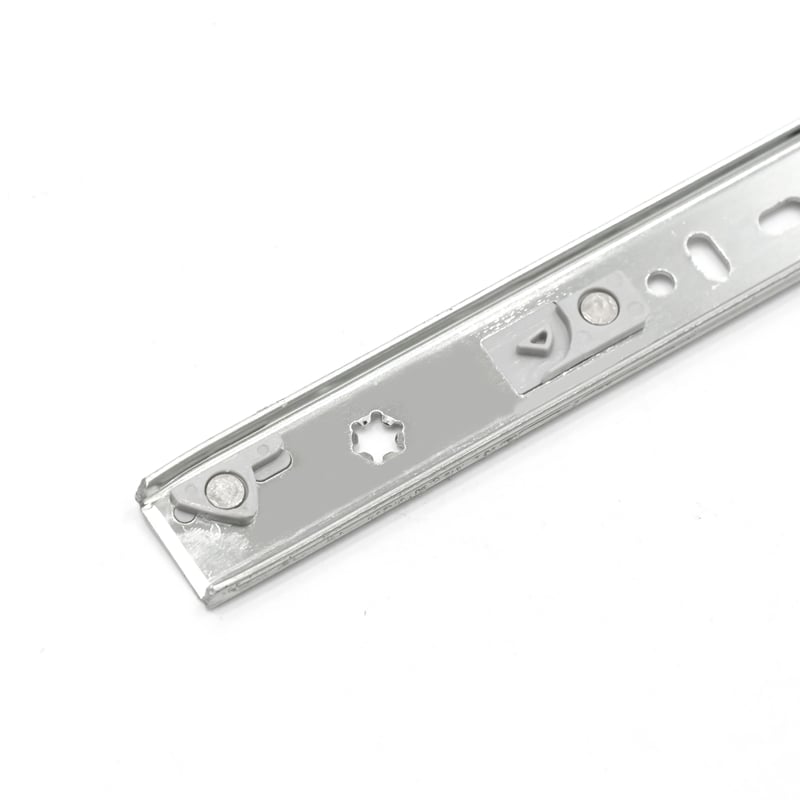

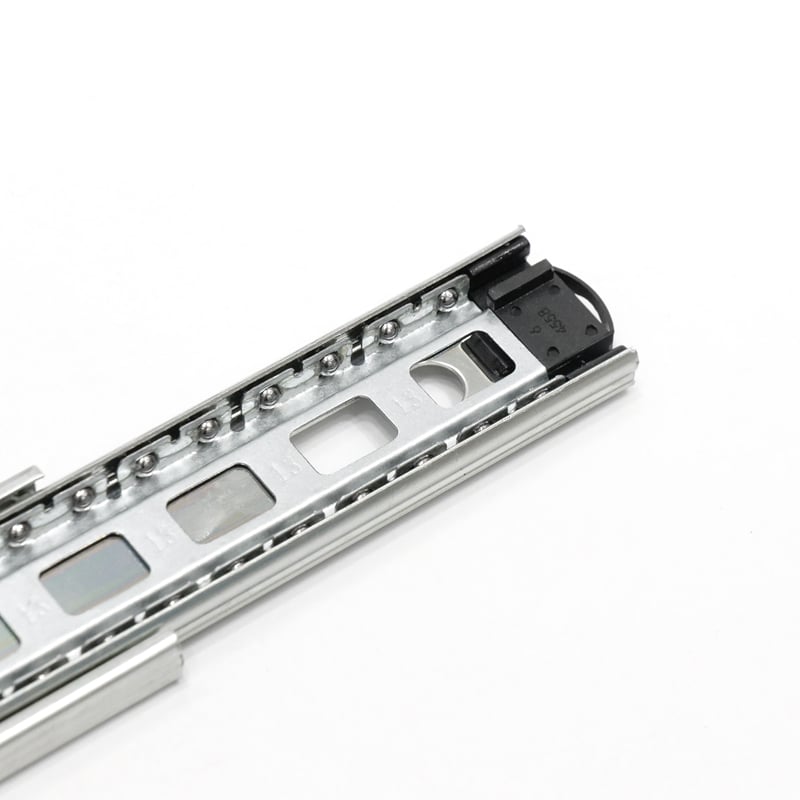

45mm Full Extension Push-to-Open Soft Closing Side Mounting Slide

Quality classification under EN 15570, Level 3
For door thickness 15 - 24 mm
Cup depth 12.8 mm
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel, nickel plated

Model No.: MWZ03011501
Material: Steel
Finish: Zinc plated, Black Color
Salt spray test:12-24H
Loading capacity: 30KG
Quality grade: Comply with EN15338, ANSI/BHMA A156.9, ASTM-B117 test
Product features:Smooth for open and close, Slient system or push to open available

Get Quotation of this Product

Get Testing Report

ORDER INFO

WX20231026 113916

INSTALLATION DIMENSION

3408 INSTALLATION DIMENSION

INSTALLATION DIAGRAM

3408 INSTALLATION DIAGRAM
