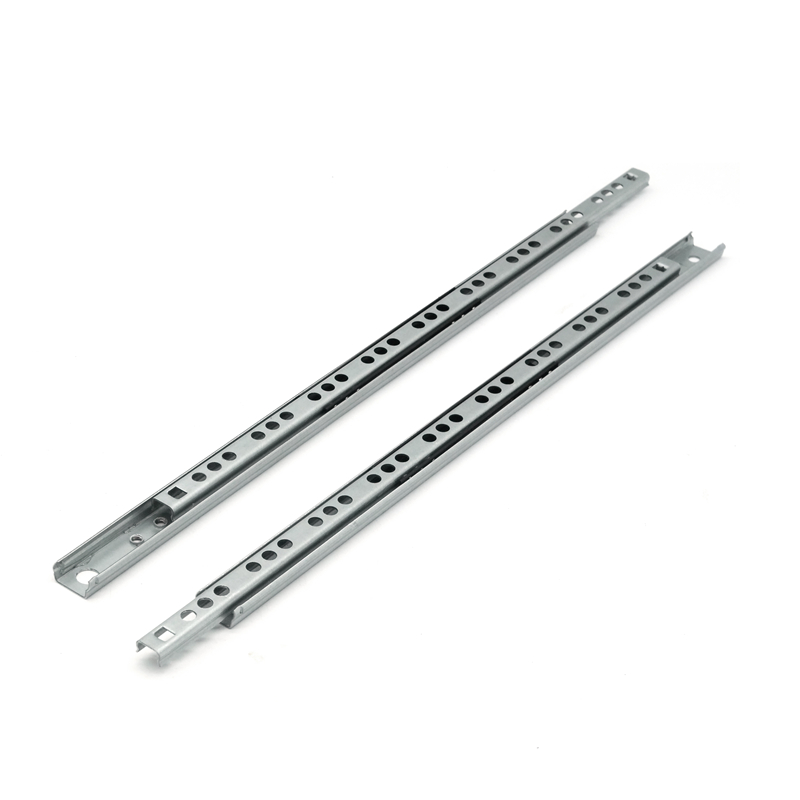

17mm 3/4 Extension Side Mounting Ball Bearing Slide

Quality classification under EN 15570, Level 3
For door thickness 15 - 24 mm
Cup depth 12.8 mm
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel, nickel plated

Model No.: MWZ03011101
Material: Galvanized plate
Finish: Zinc plated
Salt spray test:12H
Loading Capacity:15KG
Quality grade: Comply with EN15338, ANSI/BHMA A156.9,ASTM-B117 test
Product features: High quality steel ball, Firm and stable, Strong loading capacity

Get Quotation of this Product

Get Testing Report

ORDER INFO

WX20231025 101839

INSTALLATION DIMENSION

512vxvf2KDS. AC SL1001

INSTALLATION DIAGRAM

615lUATsJqL. AC SL1500
