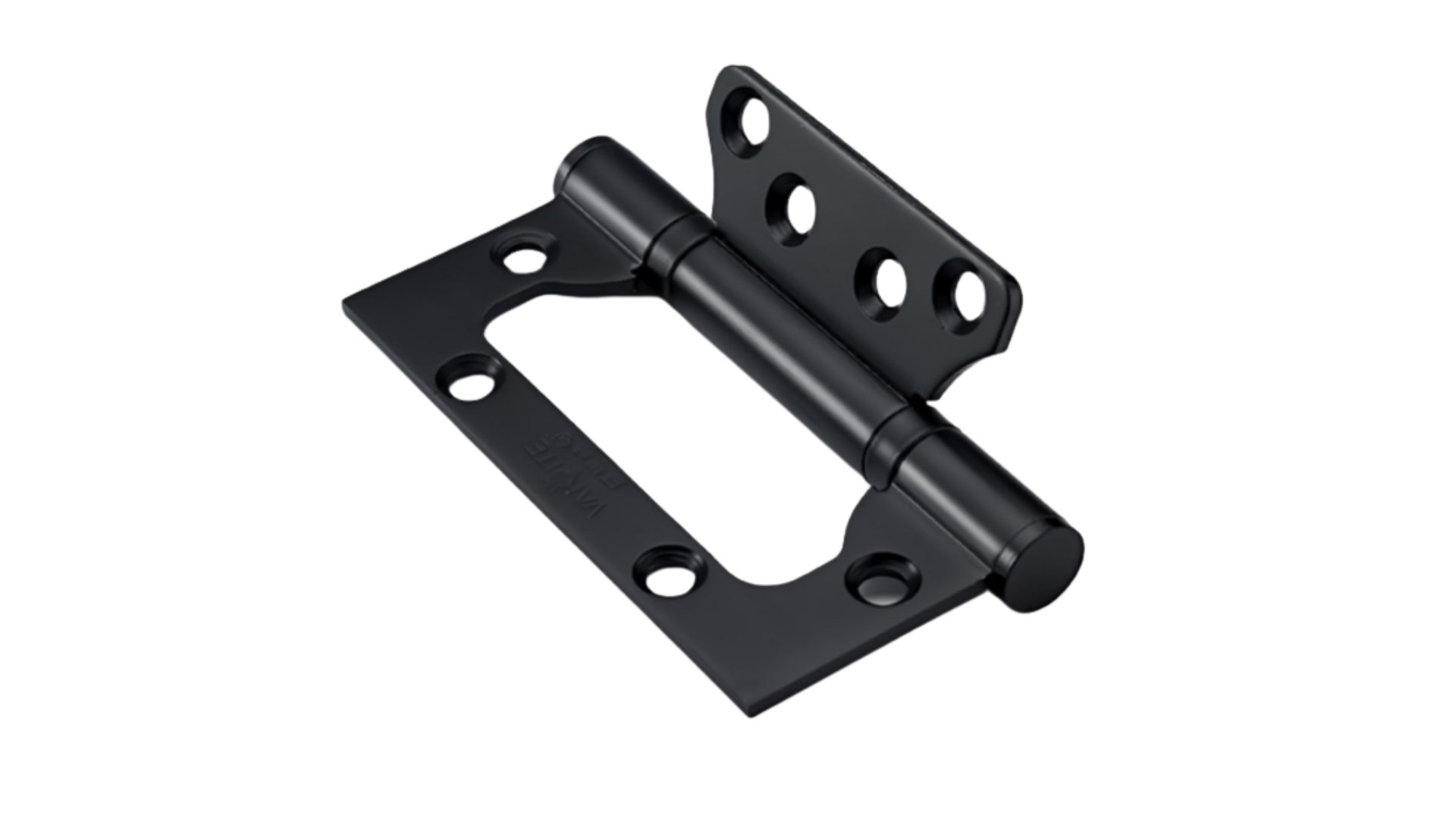

4″×3″ Iron Door Hinge

Quality classification under EN 15570, Level 3
For door thickness 15 - 24 mm
Cup depth 12.8 mm
Integrated overlay adjustment +2 mm / -2 mm
Integrated depth adjustment +3 mm / -2 mm
Height adjustment at mounting plate
Steel, nickel plated

Model No.: MWZ02012201
Materials: Iron

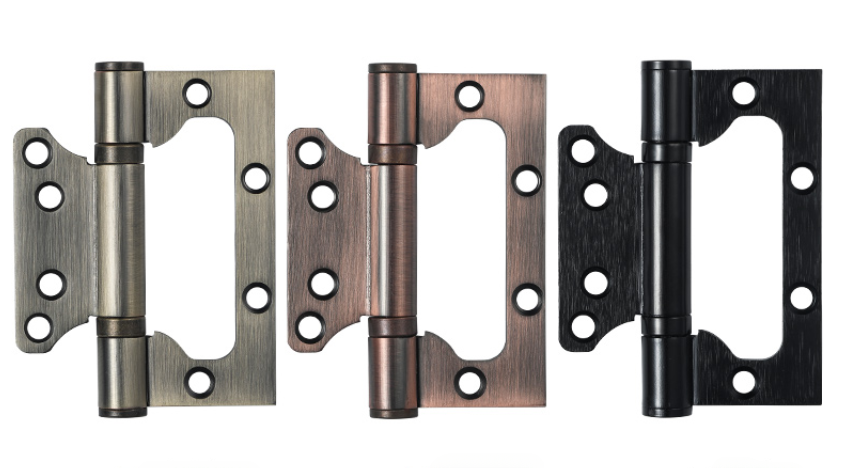

Finish: Brushed gold, Antique copper, Black, Green bronze, Nickel plating etc.
Specification: 4″×3″
Opening degree:315 °
Quality grade: Comply with ANSI/BHMA A156.9、ASTM-B117（Durability：50000cycles, NSS：48H）
Product features: Smooth and quietness, Strong loading capacity

Get Quotation of this Product

Get Testing Report

ORDER INFO

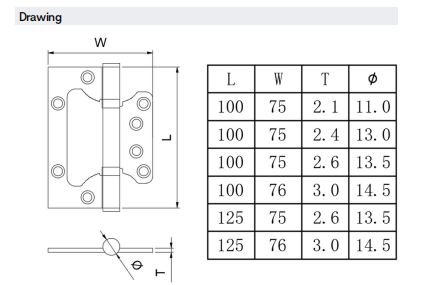

INSTALLATION DIMENSION

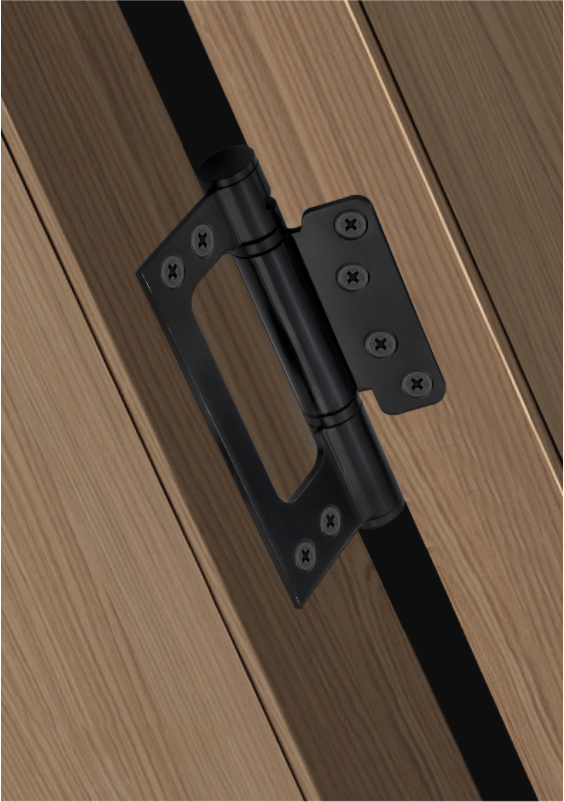

INSTALLATION DIAGRAM
