Undermount vs Bottom Mount Drawer Slides Compared

Introduction

The role of drawer slides when it comes to cabinetry is vital as they enable drawers to be smoothly opened and closed, as well as support different weights. Undermount drawer slides and bottom mount slides are arguably the most popular choices. Each type has its advantages as well as disadvantages, thus, the importance of understanding the underlying differences between them is fundamental.

This article aims to highlight undermount and bottom mount drawer slides, explaining the differences regarding installation and cosmetic appeal, weight capacity, and overall functionality. If you are a DIY enthusiast looking to upgrade your kitchen or are a seasoned carpenter, this should help you choose the right hardware for your cabinetry.

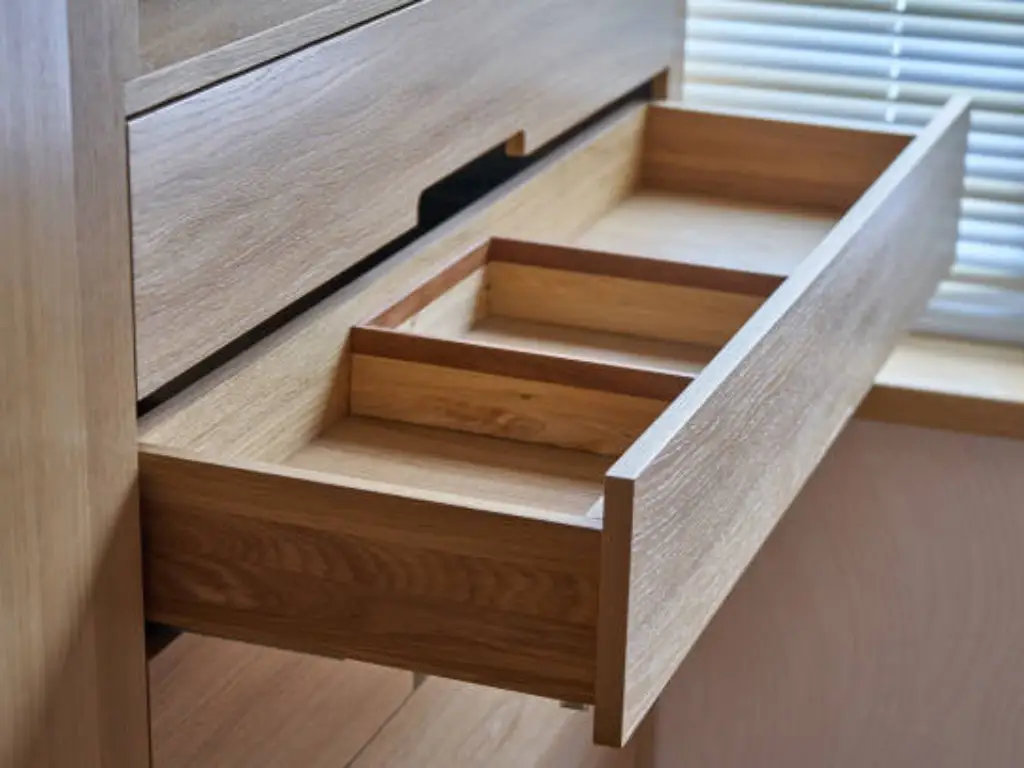

What Are Undermount Drawer Slides?

Undermount drawer slides are installed beneath the drawer box, so they disappear completely during drawer opening. Undermount drawer slides achieve their popularity in high-end cabinetry and custom furniture because of their clean appearance. The slides include full-extension functionality together with soft-close technology that enables smooth gliding drawers with silent closure.

Undermount slides provide exceptional weight support because they can handle loads exceeding 75 lbs. Undermount slides provide excellent weight support, which makes them suitable for deep drawers that need to hold heavy kitchenware and pantry goods. The precise measurement of drawer boxes becomes essential for undermount slides since the installation area needs tight dimensional accuracy. Undermount slides represent a premium choice for contemporary kitchens and furniture because they have higher costs than other drawer slide types.

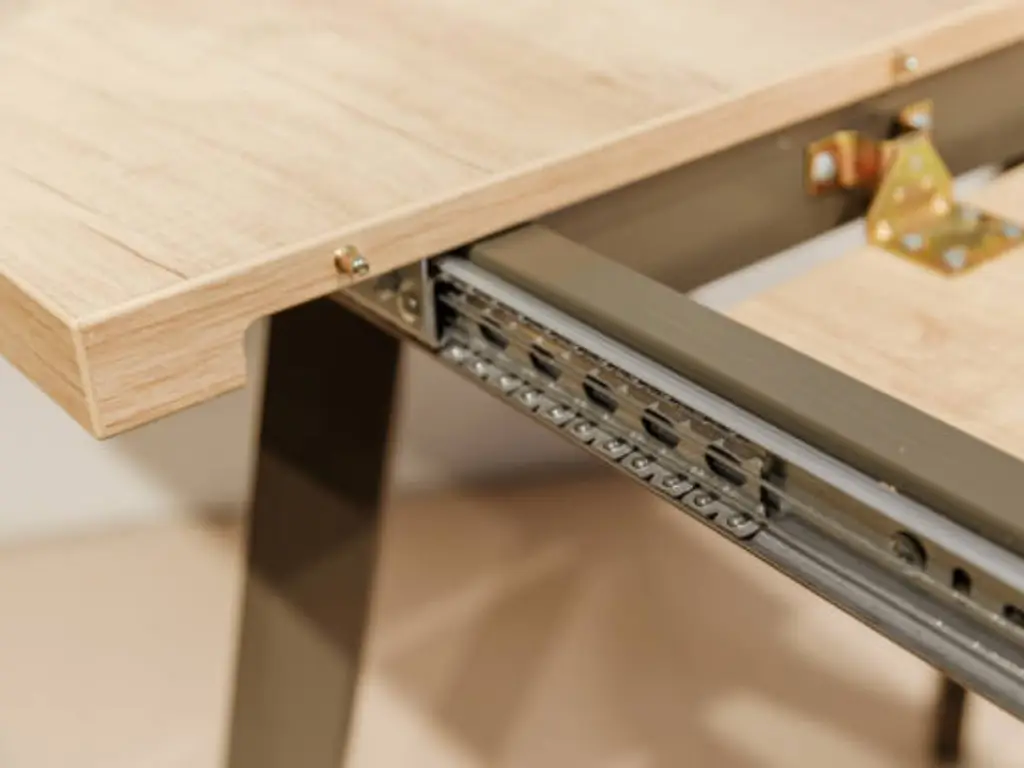

What Are Bottom Mount Drawer Slides?

Bottom mount drawer slides are positioned at the bottom edges of drawers, so they show part of their length when drawers are extended. The slides are frequently used in affordable cabinetry and office furniture, and rental apartments. The installation process for bottom mount slides becomes simpler because they show flexibility regarding drawer dimensions.

Bottom mount slides serve as an economical choice, yet they carry lower weight capacities than undermount slides. Bottom mount slides operate with lower weight limits, which makes them appropriate for holding cutlery and stationery and clothing drawers. The extension capabilities of these slides are restricted because many models provide only partial extensions instead of full extensions to drawer contents. The bottom mount slide stands out as an excellent option when budget and installation simplicity matter more than perfect appearance.

Key Differences Between Undermount and Bottom Mount Slides

This table provides essential information about the main distinctions between undermount and bottom mount drawer slides to assist your decision-making process.

Your drawer functionality requirements stem from your planned usage of the drawers. Undermount slides deliver the best functionality and seamless appearance for modern kitchen renovations, high-end furniture projects, and demanding durability requirements. These slides provide complete extension along with smooth operation and support heavy loads which makes them perfect for heavy-duty storage needs.

Bottom mount slides serve as an economical and simple installation option for rental units, office storage, and budget-friendly cabinetry. Bottom-mount slides provide an affordable and reliable solution for DIY projects and basic furniture construction because they are easy to install yet lack the modern appearance of undermount slides. The selection of drawer slides depends on how you want your design to look, the amount you are willing to spend, and the amount of storage you need.

Besides undermount and bottom mount drawer slides, there are also side mount drawer slides. If you’re interested in learning about the differences between undermount and side mount drawer slides, please visit our article: Undermount vs Side Mount Drawer Slides.

This article, titled Undermount vs Side Mount Drawer Slides: Key Differences and Benefits, provides a detailed comparison of the two types of drawer slides, helping you make an informed decision for your project.

When to Choose Undermount vs. Bottom Mount Drawer Slides

Choose Undermount Slides:

• The modern sleek design with a smooth appearance drives your choice of undermount slides.
• A smooth operation requires full extension and soft-close features together with your choice of undermount slides.
• The weight of your cookware and tools will require strong drawers.
• The project involves high-end kitchen or furniture construction, which requires attractive design elements.

Choose Bottom Mount Slides:

• You need an affordable drawer slide system that requires simple installation.
• The drawers will hold weights ranging from light to moderate such as office supplies and clothes.
• The slide system you require should be basic for rental units and basic cabinetry.
• The implementation of full-extension and soft-close features does not matter to your current project.

The selection of drawer slides depends on both the available space and personal preferences, as well as the intended usage of the drawer. Undermount slides offer smooth operation and modern appearance, so they should be your choice. The choice between bottom mount slides and undermount slides should be based on installation convenience and budget considerations.

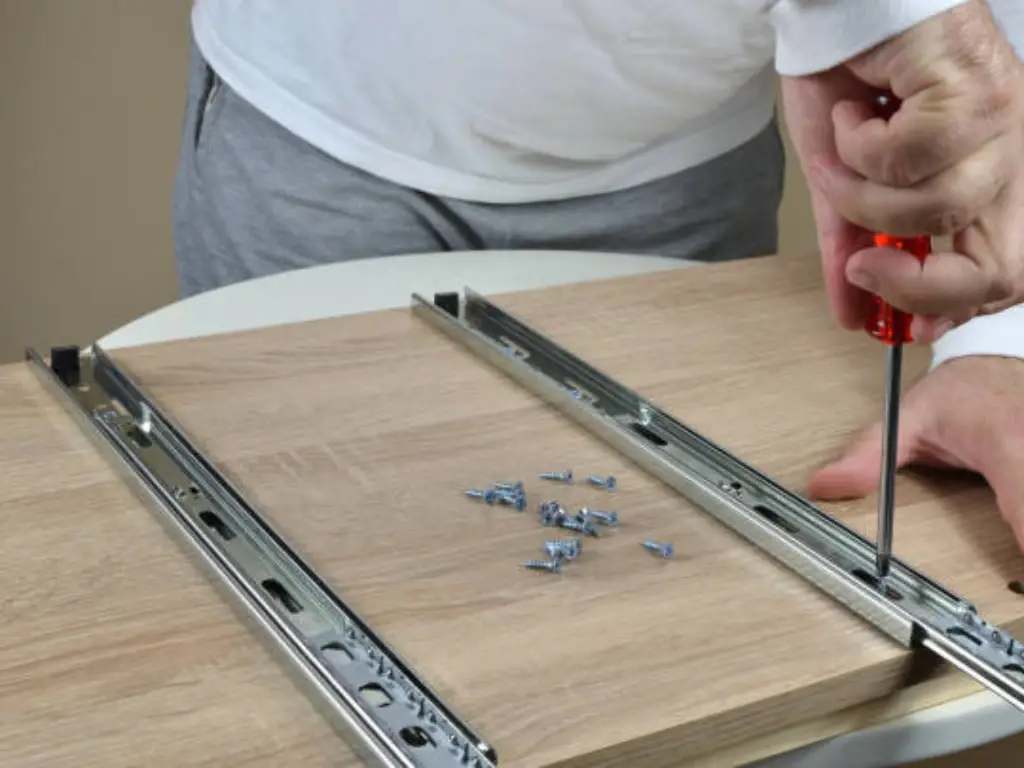

Installation Tips & Common Mistakes

For Undermount Drawer Slides:

• The manufacturer’s instructions should be followed to achieve correct alignment.
• The drawer width needs to match the slide system’s precise clearance specifications, which normally require 3/8″ clearance space on both sides.
• A jig or template helps users position the slides correctly before final attachment.
• The slides need to be placed at a level position to prevent misalignment of the drawers.

For Bottom Mount Drawer Slides:

• The drawer sides should have at least 1/2” clearance space for proper installation.
• Secure the slides tightly to prevent them from wobbling or sagging during their lifespan.
• High-quality screws should be used to secure the system because they provide both durability and prevent screw loosening.

The installation process must be done carefully because proper installation leads to optimal functionality.

Maxave – Your Trusted Partner in Premium Drawer Slides

3D full extension concealed slide with handles-American type

• Material: Galvanized steel
• Finish: Primary color
• Applied thickness: 16mm
• Load: 35KG, Durability 50000 cycles
• Quality grade: Comply with ANSI /BIFMA X5.5, ANSI /BHMA A156.9, ANSI /KCMA A161.1
• Product feature: Special design and accessories for face frame cabinet, 3D quick and simple adjustment allows for height, side and front/rear adjustment, SCT damping techonology, Full extension for complete drawer access, Smooth for open and close, Slient system or push to open available

One of maxave’s undermount drawer slides products above, want to know more about other information about drawer slides, please click https://www.maxavegroup.com/drawer-slides/

More Than A Furniture Hardware Manufacturer
Your Sales Growth Specialist

Quote in 1 Hour

Maxave’s durable smooth drawer slides provide manufacturing facilities with tools to reach peak efficiency and superior quality standards. Our solutions which are made for manufacturing applications improve both functionality and appearance to deliver smooth operation and extended product lifetime. Maxave operates at a yearly output of 30 million drawer slide units through their advanced galvanizing process which provides 200% rust protection and achieves 99.1% yield rate. Maxave offers reliable drawer slides for manufacturing upgrades through a partnership that will boost your production capabilities to reach unprecedented heights.

Click here https://www.maxavegroup.com/undermount-drawer-slides/ to get more detail.

Conclusion

There exists a hardware debate between undermount versus bottom mount drawer slides where each variety provides unique benefits. Undermount slides provide the best selection for premium cabinetry since they combine seamless integration with complete drawer extension and a heavy-duty weight capacity. These slides need exact installation methods and cost more than other options.

Bottom mount slides serve as an affordable solution that comes with straightforward installation and supports lightweight drawers. These slides work best in rental apartments and office furniture as well as DIY projects because they offer affordable installation alongside low cost.

The selection of drawer slides depends on both your project needs and your financial resources and your desired design look. The combination of sleek modern design and soft-close functionality and high weight capacity makes undermount slides your best choice. Bottom mount slides represent an excellent choice for those seeking both affordability and functionality in their drawer solutions.
